Creating a Foundation for Interactive Heads-Up Displays was my Master's Thesis at Chalmers. It was part of SEER - a reasearch project initiated by RISE Victoria and conducted at Semcon. The thesis investigate and examplifies how Interctive HUDs should be designed to work as a safe complement to a phone during autonomous driving. It delivers a testing method, an HMI Concept and Design Guidelines for Interactive Automotive HUDs.
Below follow some material from the study. The published report with all it's glorious findings can be found HERE

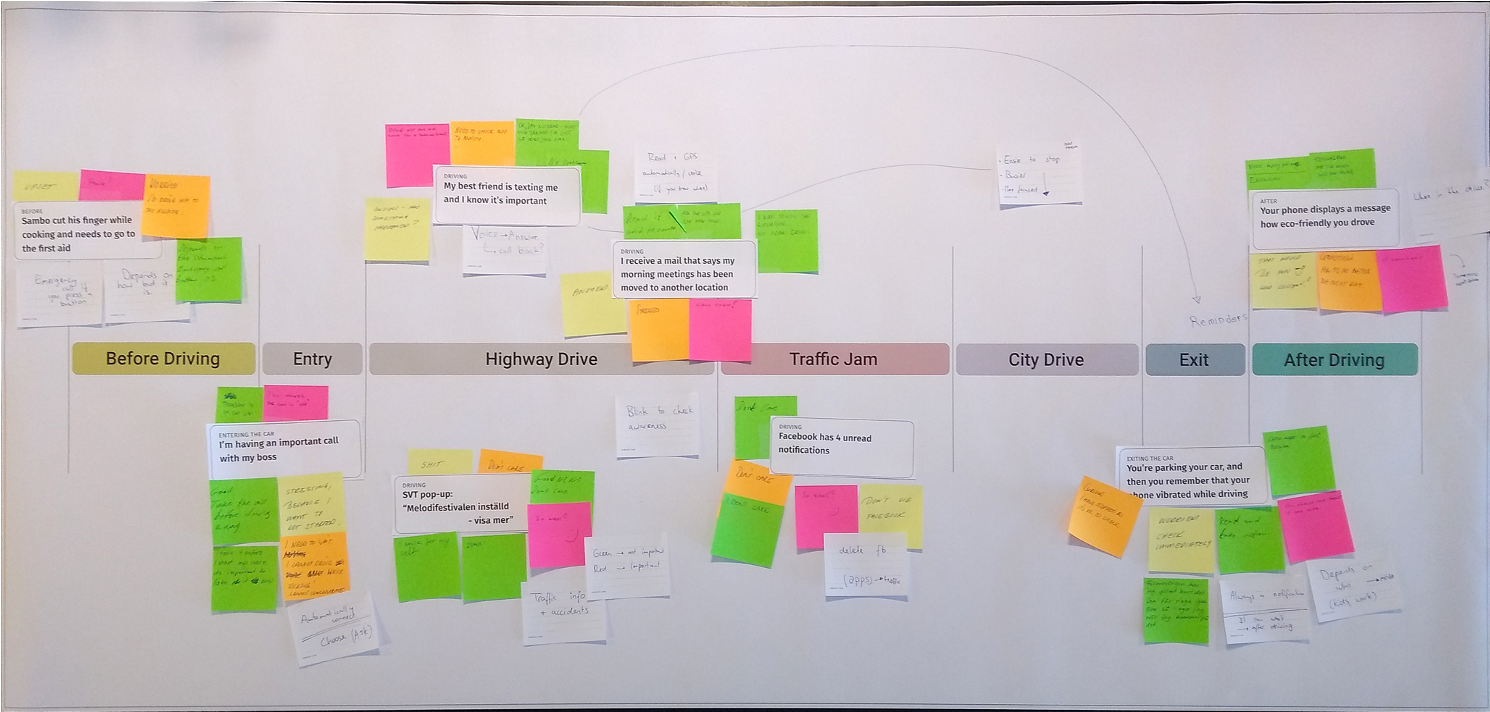

User Research

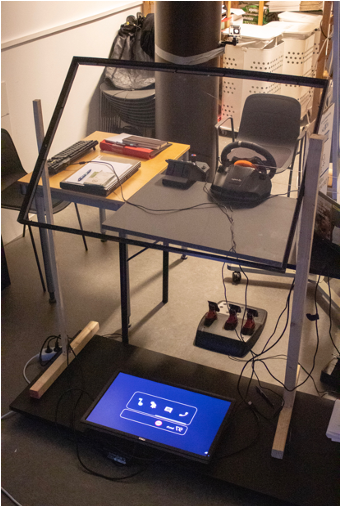

Heads-up Display SETUP

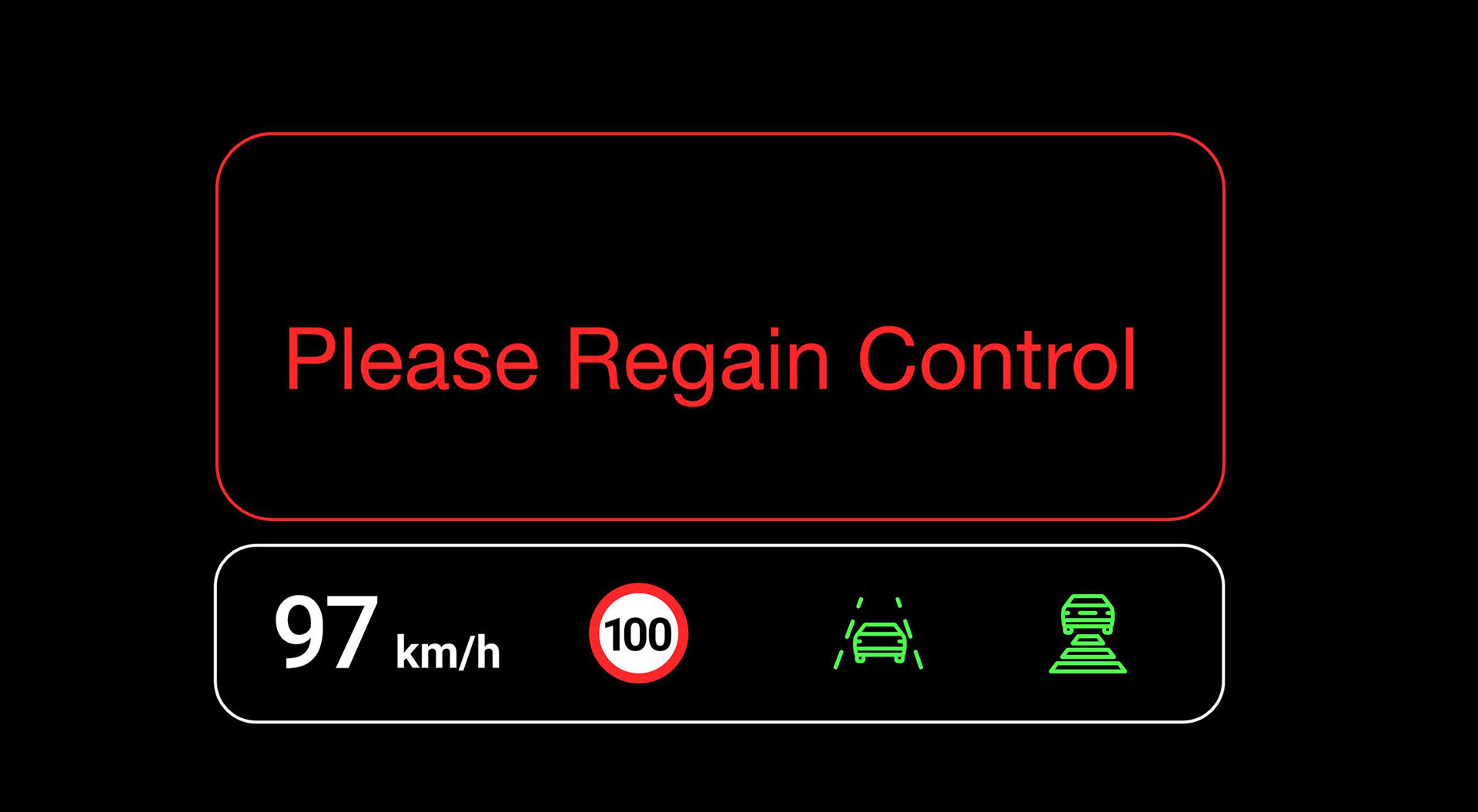

HUD UI - Black become transparent
HUD UI - Black become transparent

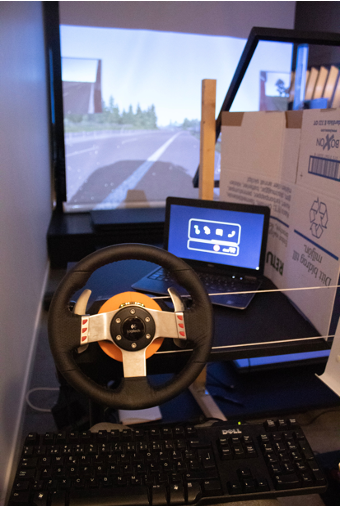

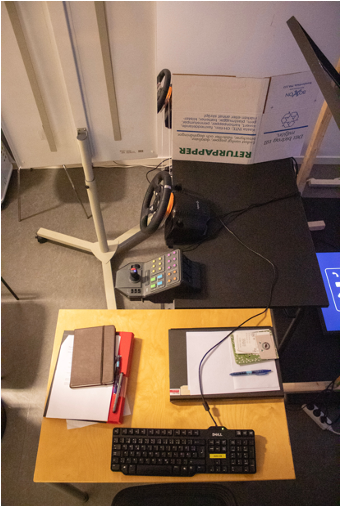

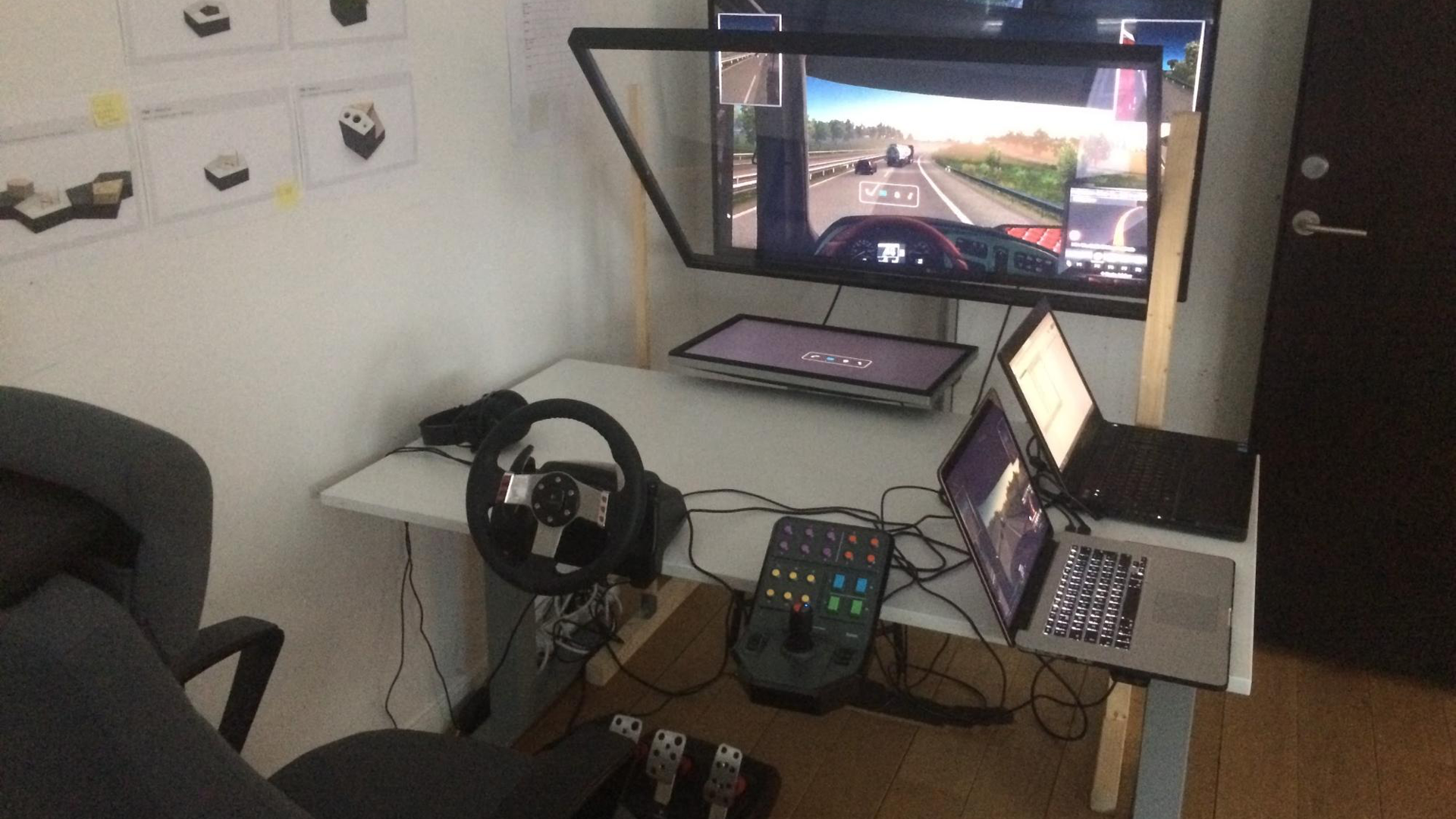

HUD Simulator Test Setup
HUD Simulator Test Setup
When reflecting the UI on the screen it appears in the driver's field of view
When reflecting the UI on the screen it appears in the driver's field of view
HUD UI Wireframes
Main page
Main page

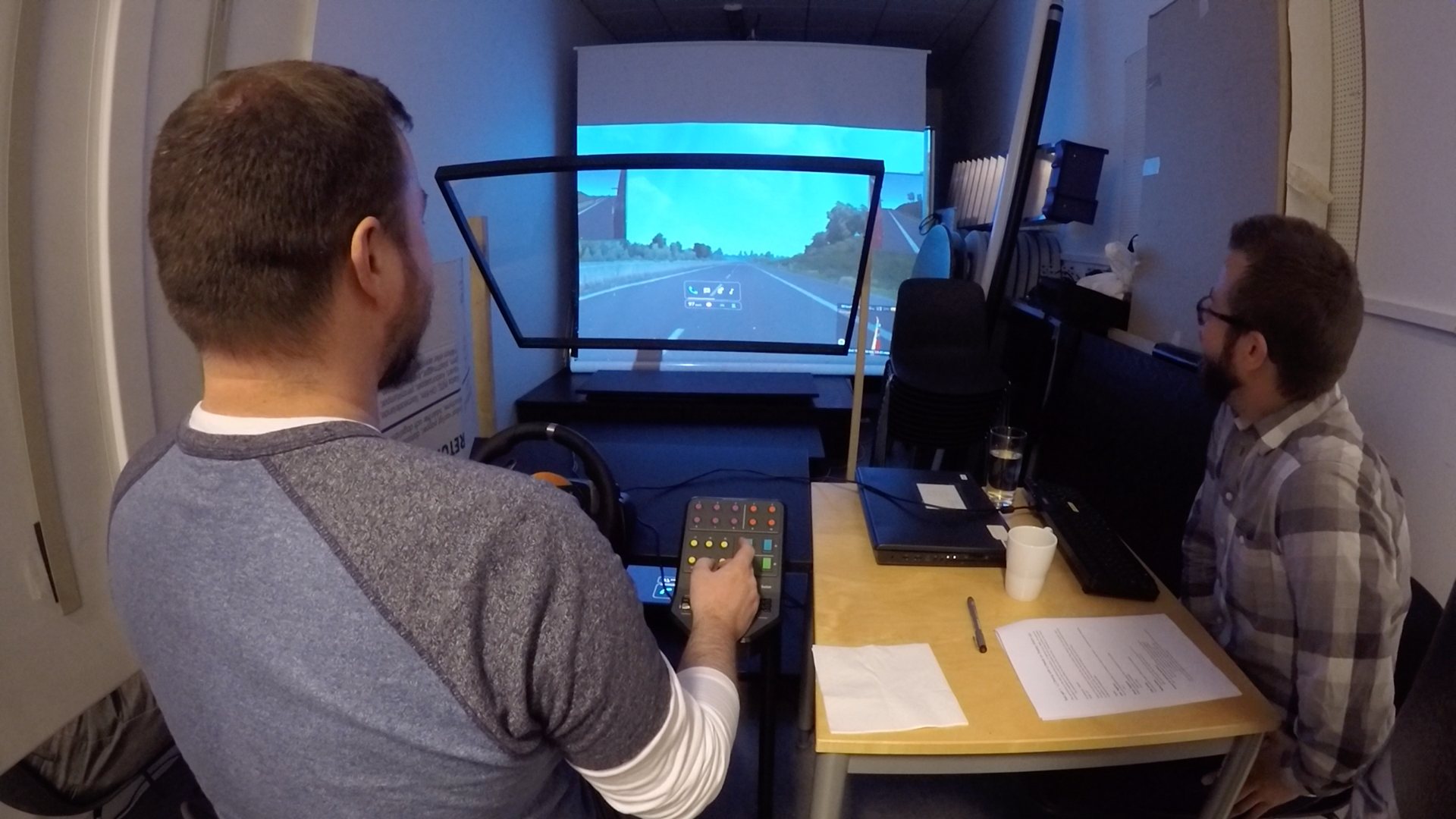

Simulating SAE Level 2 Autonomous Driving
HMI Concept Evaluation
